smarty Overview
A family of networkable, DIN rail mounting, programmable controllers with digital and analog I/O.
drive.web smarty UACs are offered in a variety of configurations . . .
smarty dw250
smarty dw240
smarty dw210

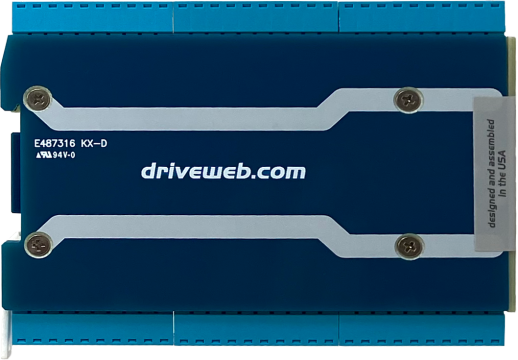

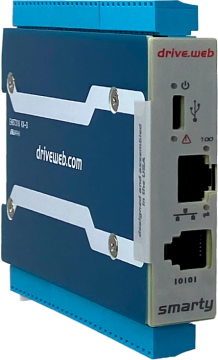

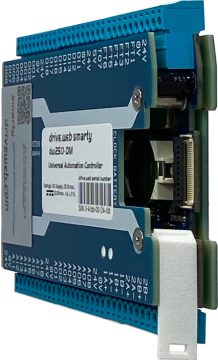

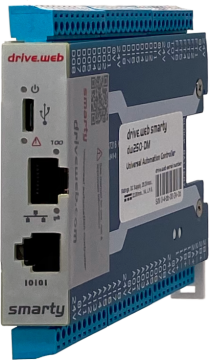

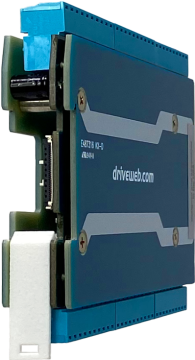

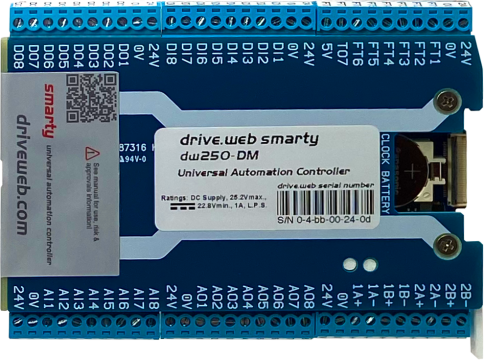

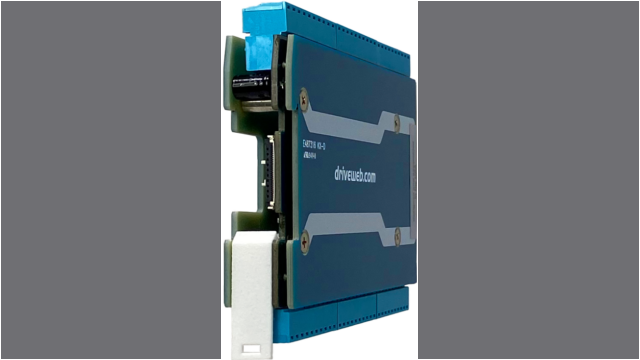

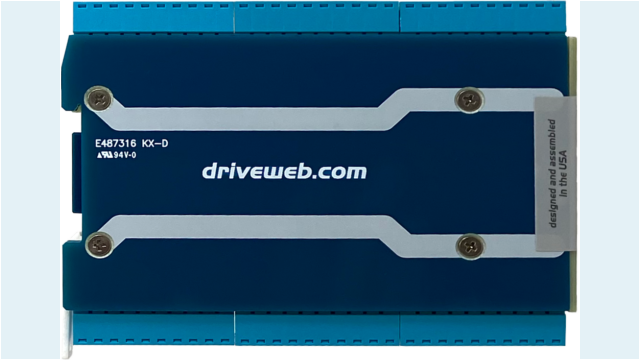

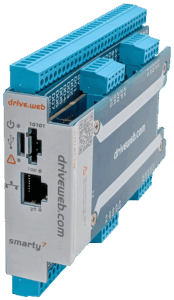

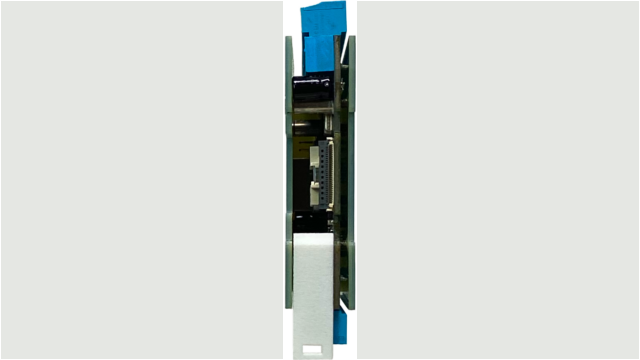

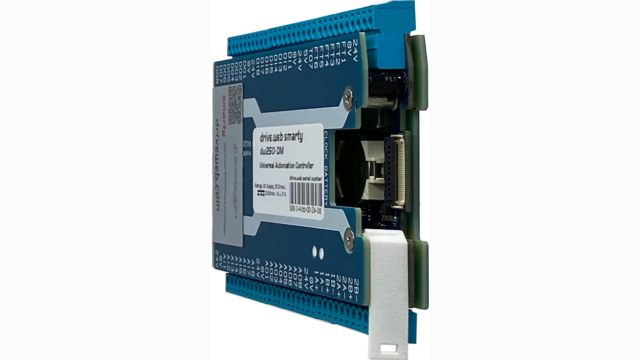

smarty7 dw250

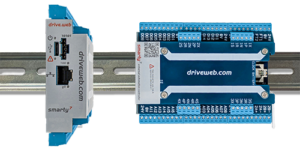

Smart, compact packaging
0.82" x 3.62” x 4.73”
[21 x 92 x 120 mm (WxHxD)]
0.82" x 3.62” x 4.73”
[21 x 92 x 120 mm (WxHxD)]
Overview
NEW smarty7
The new smarty7, dw250 series controllers are a full featured range of high performance, industrial, programmable controllers for process and machine control that provide cost effective solutions for systems of any size or complexity.
The Basics
- designed & assembled in the USA
- smart distributed control for the IIoT
- peer-to-peer connections over Ethernet
- unlimited i/o expansion
- Internet accessible
- 100% compatibility with all other drive.web devices
- savvy design, monitoring, and diagnostic tools
Features
- performs complex motion control functions & logic in milliseconds
- encoder pulses up to 1 MHz with 64 bit count
- shares encoder pulses in real-time between units over Ethernet
- 60 plug-in terminals
- cost effective in systems of any size or complexity
- Floating point or integer math
- Clock time & date with SNTP server interface
- savvy tools with trending, smart phone interface, drag & drop connections
- 100baseTX Ethernet with drive.web peer-to-peer networking
- USB-C port – provides system-wide access to all devices – drives, controllers, touch screens, etc.
- Battery holder for real time clock

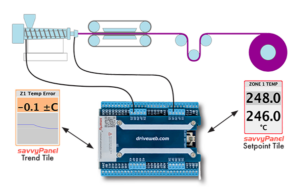

Applications
- basic switching to complex logic
- simple arithmetic to complex math
- winders, open/closed loop with smart tension control
- registration, indexing, electronic line shaft over Ethernet
- advanced motion and position control
- smart pumping and air flow functions
- sun tracking for solar energy optimization
- material handling, batch, and counting functions
Standard savvyPanel Library
For iPad, iPhone, and touchscreen PC operator stations with arrows, meters, start and stop pushbuttons.
Standards Compliance in Process:
UL, cUL, CE, UKCA, FCC 47 CFR § 15, and ICES-003
Specifications
Models & Options
Dimensions

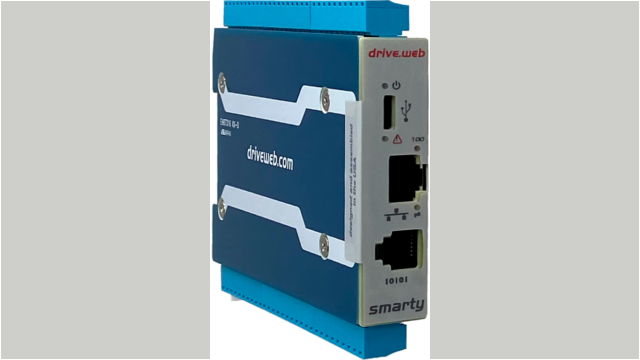

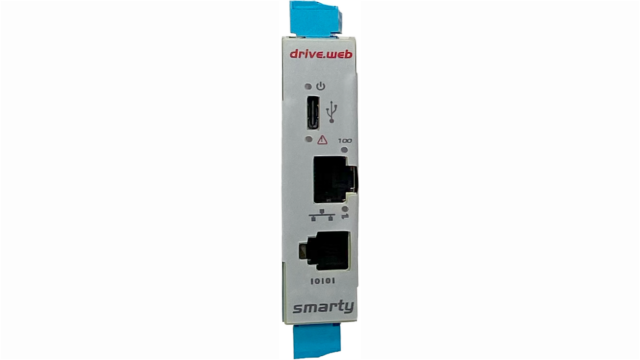

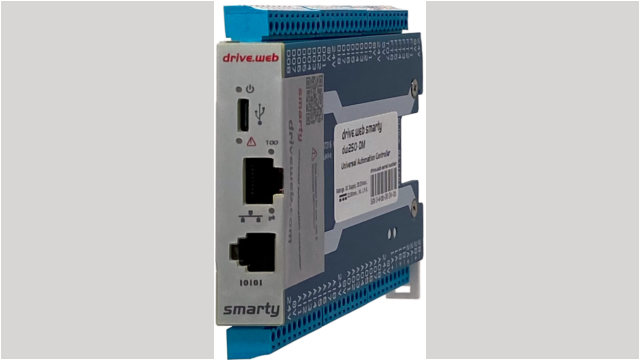

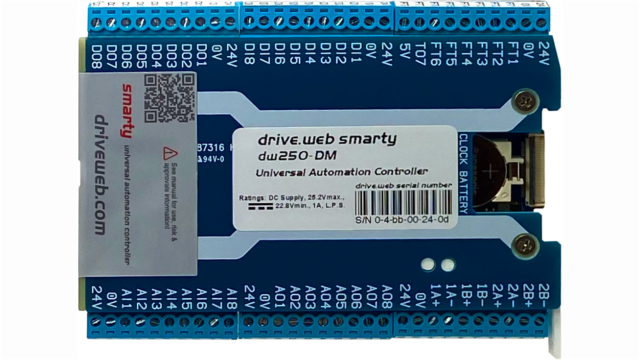

Images
Drawings
Downloads

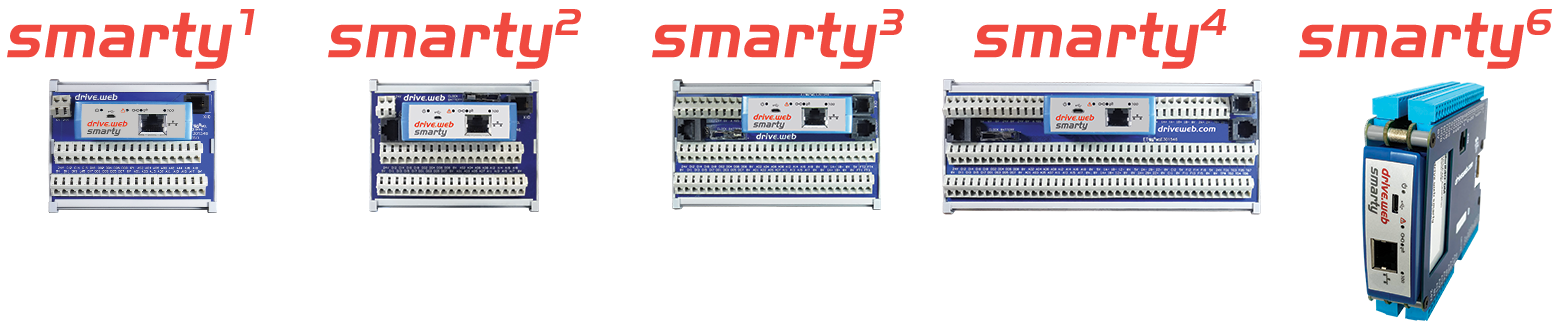

smarty dw240
Overview
smarty dw240 series
The world’s most advanced Universal Automation Controller
-
Advanced Motion Control
-
Smart Process Control
-
Distributed, deterministic processing over Ethernet
-
Homogeneous integration for drives, HMIs, remote I/O
-
savvy system design tools
-
Right for the IIoT future
-
Easy, intuitive, affordable, expandable
-
For systems of any size or complexity
The smarty dw240 series comes fully loaded:
- Install a dw240 on the customer interface terminal rail to save on wiring and installation costs!
- Floating point math for accurate and complex calculations.
- Count and Frequency with 64-bit count for precision positioning; to 1MHz input, 500kHz output.
- High speed event inputs for position markers and registration.
- Processing and networking speeds that are up to 10 times faster than the dw210, especially with larger configurations.
- Increased storage; four times more capacity.
- Up to six frequency inputs with multiple modes.
- Up to two current inputs; 0 to 20mA, 4-20mA.
- Up to two encoder inputs.
- Up to seven timing outputs with multiple modes to 500kHz; frequency, stepper, and digital.
- Real-time clock with optional battery back up. Low-power mode allows real time clock to run without power from coin cell battery, USB power, or 24-hour internal storage.
- Sensor bus for large, smarty-dedicated networks to be announced.
- XIO, Extended I/O port for up to 10 fast-updating modules with up to 16 I/O on each. Modules for high current, high voltage, precision analog, load cells and more are planned.
- Every dw240 comes fully equipped with dw build options -04 -05 -06 -10 -25 -26 -29 -39 as standard! (smarty2 and above)
Every smarty dw240 model is available with either screw or spring clamp terminations.
Choose the option that best suits your application!
Specifications
Models & Options
Dimensions
Images
Downloads
Legacy
smarty dw210
Smart, compact packaging
4” high x 4.75” deep x 0.9” wide
(102 x 120 x 22 mm)
Overview
Smart Distributed Control Concept
- No system bandwidth degradation with systems of any size
- One completely homogeneous environment for drives, controls, operator stations, i/o – everything!
- Complete data consistencythroughout a system
- The ability to store the entire system configuration in the controllers for easy field total access
- The ability to manage total system program thread and hierarchy
- Consistent multi-level password protection
Key Features
- Ethernet peer-to-peer networking
- Gateway options for ModbusTCP/IP, EIP, CANopen and others
- Internet access
- Graphical Signal Flow Diagram system documentation
- Additional i/o
- Easy interface to most operator stations, PLCs, SCADA, etc.
- Event driven emails from devices
Precision
- 16-bit integer basic arithmetic
- 32-bit floating point calculator functions
- 64-bit encoder pulse counting
Standard savvyPanel Library
For iPad, iPhone, and touchscreen PC operator stations with arrows, meters, start and stop pushbuttons.
Standard Function Block Library
- Adders, Subtracters, Multipliers, Dividers, Clamps, Switches, Logic
- Event driven email messages
- Full featured PI controllers
Optional Function Block Libraries
- Advanced Process Control & PLC
- Winder Control
- Advanced Math
- Encoder Position & Indexing
Standards
Specifications
Models & Options
Dimensions
