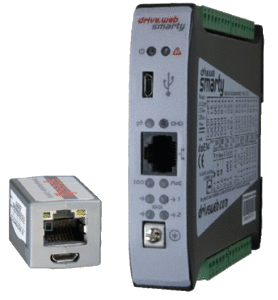

smarty & speedy - Stock Controllers (un-configured)

smart systems controller - pack 1

speedy & smarty dwOPTION -1121 for:

  • Process line drive coordination
  • General purpose machine control

Includes all standard controller features together with:
advanced arithmetic, logic, process control, counters, timers, touch screen PC/iOS control, systems utilities



Incorporates standard drive.web options

  • -04, ModbusTCP/IP slave Ethernet
  • -05, Advanced Process control Function Block Library
  • -25, EIP/PCCC Ethernet slave for Allen Bradley interface
  • -26, savvyPanel full featured, touch screen PC and iOS operator station controller

smart systems, winders & motion - pack 2

speedy & smarty dwOPTION -1122 for:

  • Full featured winder control with single or multi cores, turret indexing, auto splicing, open and closed loop, edging
  • Web handling, tension control, accumulators, infeeds, center winding, slip core, surface winding

Includes all pack 1, dwOPTION -1121 features together with:
diameter calculation, linear and hyperbolic taper control, static/dynamic friction compensation, inertia compensation



Incorporates standard drive.web options

  • -04, ModbusTCP/IP slave Ethernet
  • -05, Advanced Process control Function Block Library
  • -06, Winder Control Function Block Library
  • -25, EIP/PCCC Ethernet slave for Allen Bradley interface
  • -26, savvyPanel full featured, touch screen PC and iOS operator station controller
  • -36, Motion Control Function Block Library with trapezoidal & cam motion

precision smart control with 1 encoder - pack 3

smarty dwOPTION -1123 for:

  • Basic precision speed, position or winder control
  • Basic encoder count control

Includes all pack 2, dwOPTION -1122 features together with:
cyclic position, linear position, indexing



Incorporates standard drive.web options

  • -04, ModbusTCP/IP slave Ethernet
  • -05, Advanced Process control Function Block Library
  • -06, Winder Control Function Block Library
  • -11, Encoder Control Function Block Library
  • -15, Single bidirectional encoder input
  • -25, EIP/PCCC Ethernet slave for Allen Bradley interface
  • -26, savvyPanel full featured, touch screen PC and iOS operator station controller
  • -36, Motion Control Function Block Library with trapezoidal & cam motion

precision smart control with 2 encoders - pack 4

smarty dwOPTION -1124 for:

  • Precision speed, position or winder control, registration, phase lock, fast event counting
  • Encoder count control with home auto calibration
  • Dual axis pick & place with trapezoidal motion
  • Cut to length with cam motion control

Includes all pack 3, dwOPTION -1123 features together with:
registration, fast event counting, speed lock, phase lock, precision ratio



Incorporates standard drive.web options

  • -04, ModbusTCP/IP slave Ethernet
  • -05, Advanced Process control Function Block Library
  • -06, Winder Control Function Block Library
  • -11, Encoder Control Function Block Library
  • -16, External encoder module interface port
  • -25, EIP/PCCC Ethernet slave for Allen Bradley interface
  • -26, savvyPanel full featured, touch screen PC and iOS operator station controller
  • -36, Motion Control Function Block Library with trapezoidal & cam motion
  • -42-45, External dual, bidirectional encoder module with marker, fast event inputs, buffered encoder retransmit, 5VDC encoder supply

precision stepper control with 2 encoders - pack 5

smarty dwOPTION -1125 for stepper drive control:

  • Precision speed, position or winder control, registration, phase lock, fast event counting
  • Encoder count control with home auto calibration
  • Dual axis pick & place with trapezoidal motion
  • Cut to length with cam motion control

Includes all pack 3, dwOPTION -1123 features together with:
registration, fast event counting, speed lock, phase lock, precision ratio



Incorporates standard drive.web options

  • -04, ModbusTCP/IP slave Ethernet
  • -05, Advanced Process control Function Block Library
  • -06, Winder Control Function Block Library
  • -11, Encoder Control Function Block Library
  • -25, EIP/PCCC Ethernet slave for Allen Bradley interface
  • -26, savvyPanel full featured, touch screen PC and iOS operator station controller
  • -36, Motion Control Function Block Library with trapezoidal & cam motion
  • -38, Dual stepper drive controller with external encoder module interface port
  • -42-45, External dual, bidirectional encoder module with marker, fast event inputs, buffered encoder retransmit, 5VDC encoder supply
