speedy Embedded & Onboard Controllers

A family of miniature controllers designed to embed or mount onboard devices,
such as drives, to provide full-featured automation functions and peer-to-peer networking.

Base unit features 100baseTX Ethernet,
drive.web
distributed control, and USB port.

speedy
dw270 speedy
dw220

So small it’s easy to miss, so smart it’s impossible to beat!

1 2

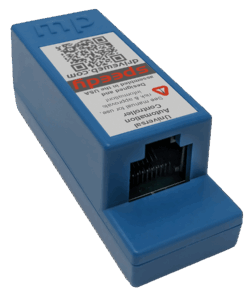

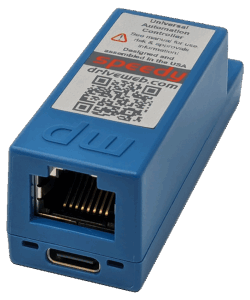

Only 0.91” x 0.89” x 2.42”
(23 x 22.5 x 61.5mm)

The easiest, affordable way to get all your drives & devices up onto peer to peer Ethernet
Improve your system bandwidth by reducing your RS485 network load
Add full featured programmable control
Same huge processing power as a

smarty
100baseTX Ethernet peer-to-peer networking
USB port for easy system wide programming
Fast ModbusRTU or CANbus device interface

Overview

Smart Distributed Control Concept

No system bandwidth degradation with systems of any size
One completely homogeneous environment for drives, controls,
operator stations, i/o – everything!
Complete data consistency throughout a system
The ability to store the entire system configuration in the controllers for
easy field total access
The ability to manage total system program thread and hierarchy
Consistent multi-level password protection

Key Features

Ethernet peer-to-peer networking
Gateway options for ModbusTCP/IP, EIP, CANopen and others
Internet access
Graphical Signal Flow Diagram system documentation
Easy interface to most operator stations, PLCs, SCADA, etc.
Event driven emails from devices

Precision

16-bit integer basic arithmetic
32-bit floating point calculator functions

Standard savvyPanel Library

For iPad, iPhone, and touchscreen PC operator stations with arrows, meters, start and stop pushbuttons.

Standard Function Block Library

Adders, Subtracters, Multipliers, Dividers, Clamps, Switches, Logic
Event driven email messages
Full featured PI controllers

Optional Function Block Libraries

Advanced Process Control & PLC
Winder Control
Advanced Math

Standards

Specifications

speedy…Controllers for embedding in drives

Used for all programmable control, peer-to-peer Ethernet networking and system integration tasks.

Standard Features

Device interface port – either:
- a) ModbusRTU master up to 500 kb/s
- or b) Dedicated CANopen link
- or c) Other dedicated drive interface
USB port for easy system wide programming and control
Easy interface to most drives
Use networked or stand alone as a gateway
Internet accessible
Peer to peer, deterministic, Ethernet networking, 100baseTX or 10baseT Ethernet with auto-negotiation Full duplex supported
Auto-MDIX per IEEE802.3ab (auto-crossover resolution)
drive.web distributed control
Intuitive, graphical function block programming tools
Complete graphical configuration & documentation data stored in devices
Firmware field upgradable
All circuit boards conformal coated for very high reliability
SNTP server time/date synchronization support (without battery backup)
100% backward compatible with all existing drive.web installations

Optional Features

Full savvyPanel touchscreen PC and iOS device capability
EIP/PCCC Ethernet
Function Block Libraries for advanced process control, winders, and solar
DIN rail mount with screw terminals for ModbusRTU port

Models & Options

Models

dw270	speedy generic interface controller with 500kbps ModbusRTU master
dw274	speedy plug-in automation controller for P2 Closed Loop Vector Drives with 7″ wired interface
dw278	speedy plug-in automation controller for E3 Series General Purpose Drives with 7″ wired interface
dw279	speedy automation controller with generic CANopen device

Options

* Options are mutually exclusive | X = Available if not excluded | S = Standard feature

Function Block Libraries		dw270	dw274	dw278	dw279
-05	Advanced Process Control Function Block Library (FBL) (comparators, profilers, presets, latches, filters, counters, timers, PIDs and more)	S	S	S	S
-06	Winder Control FBL (dia. calc., taper tension., torque comp.)	S	S	S	S
-10	Advanced Math FBL (trigonometric, log, exponential)	S	S	S	S
-29	Solar FBL with sun position calculator	S	S	S	S
-36	Motion Control FBL with trapezoidal motion & cam profile	S	S	S	S
Communications Options		dw270	dw274	dw278	dw279
-04	Ethernet Modbus TCP/IP slave	S	S	S	S
-25	Ethernet EIP/PCCC interface for AB PLCs	S	S	S	S
I/O Options		dw270	dw274	dw278	dw279
-26	savvyPanel iPad/iPhone & touch screen PC operator station interface	S	S	S	S

Model	Description	Data sheet	Quote This
dw270-DM-S7MT	speedy generic interface controller with Modb...	PDF	Quote This
dw274-DM-S7MT	speedy plug-in automation controller with 7" ...	PDF	Quote This
dw278-DM-S7MT	speedy plug-in automation controller with 7" ...	PDF	Quote This
dw279-DM-S7MT	speedy automation controller with generic CAN...	PDF	Quote This

Documentation

drive.web Manuals and Downloads

Applications

Filename / Link	Size
compactlogix_eip_pccc_server_sample_program.zip	586.7 Kb
micrologix_eip_pccc_server_sample_program.zip	137.44 Kb

Firmware

Filename / Link	Size
dw21x_and_dw22x_v202D_or_dw22x_dw24x_v2116.zip	838.96 Kb
dw22x-v202D_v2116_and_pl-v6-13_combined.zip	1.05 Mb
dw230-0x3039.zip	2.71 Mb
pl-series-v6-13.zip	355.51 Kb

Manuals

Download the drive.web savvy Software Manual

Filename / Link	Size
HI504268_AppNote_savvy_Multicast.pdf	536.36 Kb
dw220_dw222_dw223_dw225_speedy_manuali2pt0.pdf	582.67 Kb
dw221_speedy_pl-series_manuali2pt0.pdf	597.76 Kb
dw224_speedy_odp2_manuali2pt0.pdf	554.01 Kb
dw228_speedy_manual_Iss1pt1.pdf	584.14 Kb
dw229_speedy_manual_iss1pt1.pdf	570.84 Kb
dw230_savvyPanel_touch_brochure.pdf	1.28 Mb
dw230_savvypanel_touch_manual_iss2.pdf	1.13 Mb
dw24x manual issue 3pt2.pdf	1.92 Mb
dw25x manual issue 1pt6.pdf	1.07 Mb
dw25x-HV Manual Iss1.1.pdf	636.5 Kb
dw25x-RL Manual Iss1pt2.pdf	594.07 Kb
dw25x-XA Manual.pdf	688.43 Kb
dw25x-XD Manual Iss1pt1.pdf	508.58 Kb
dw260 Manual.pdf	879.12 Kb
dw27x manual Iss1pt4.pdf	848.09 Kb
first_time_network_admin_b.pdf	1.14 Mb

Drawings

Filename / Link	Size
dw250-HVIO-Drawing.dwg	2.04 Mb
dw250-HVIO-Drawing.pdf	386.45 Kb
dw250-HVIO.step	5.17 Mb
dw250-S7-Drawing.dwg	1.4 Mb
dw250-S7-Drawing.pdf	274.23 Kb
dw250-S7.step	3.49 Mb
dw250-XAIO-Drawing.dwg	2.1 Mb
dw250-XAIO-Drawing.pdf	357.6 Kb
dw250-XAIO.step	4.43 Mb
dw250-XDIO-Drawing.dwg	2.07 Mb
dw250-XDIO-Drawing.pdf	372.08 Kb
dw250-XDIO.step	4.14 Mb
dw270-Drawing.dwg	2.56 Mb
dw270-Drawing.pdf	200.24 Kb
dw270.step	7.14 Mb

savvy Software for AC and DC Drives

Important Warning

This software enables the user to have extensive access to potentially dangerous machinery. This software must only be used by qualified personnel who are completely familiar with the machinery and the software. This software can cause the machine to start or stop unexpectedly or to operate in a dangerous manner that could cause serious injury or death. Extreme caution is essential — the user hereby accepts complete responsibility for use of this product.

Accept | Decline

*Note: Clicking accept will redirect you to www.driveweb.com*

So small it’s easy to miss, so smart it’s impossible to beat!

1 2

Only 0.78” x 0.79” x 1.37”
(20 x 20 x 35mm)

The easiest, affordable way to get all your drives & devices up onto peer to peer Ethernet
Improve your system bandwidth by reducing your RS485 network load
Add full featured programmable control
Same huge processing power as a

smarty
100baseTX Ethernet peer-to-peer networking
USB port for easy system wide programming
Fast ModbusRTU or CANbus device interface

dw221 embedded speedy controller for PL/X Series drives

Overview

Smart Distributed Control Concept

No system bandwidth degradation with systems of any size
One completely homogeneous environment for drives, controls,
operator stations, i/o – everything!
Complete data consistency throughout a system
The ability to store the entire system configuration in the controllers for
easy field total access
The ability to manage total system program thread and hierarchy
Consistent multi-level password protection

Key Features

Ethernet peer-to-peer networking
Gateway options for ModbusTCP/IP, EIP, CANopen and others
Internet access
Graphical Signal Flow Diagram system documentation
Easy interface to most operator stations, PLCs, SCADA, etc.
Event driven emails from devices

Precision

16-bit integer basic arithmetic
32-bit floating point calculator functions

Standard savvyPanel Library

For iPad, iPhone, and touchscreen PC operator stations with arrows, meters, start and stop pushbuttons.

Standard Function Block Library

Adders, Subtracters, Multipliers, Dividers, Clamps, Switches, Logic
Event driven email messages
Full featured PI controllers

Optional Function Block Libraries

Advanced Process Control & PLC
Winder Control
Advanced Math

Standards

Specifications

speedy…Controllers for embedding in drives

Used for all programmable control, peer-to-peer Ethernet networking and system integration tasks.

Standard Features

Device interface port – either:
- a) ModbusRTU master up to 500 kb/s
- or b) Dedicated CANopen link
- or c) Other dedicated drive interface
USB port for easy system wide programming and control
Easy interface to most drives
Use networked or stand alone as a gateway
Internet accessible
Peer to peer, deterministic, Ethernet networking, 100baseTX or 10baseT Ethernet with auto-negotiation Full duplex supported
Auto-MDIX per IEEE802.3ab (auto-crossover resolution)
drive.web distributed control
Intuitive, graphical function block programming tools
Complete graphical configuration & documentation data stored in devices
Firmware field upgradable
All circuit boards conformal coated for very high reliability
SNTP server time/date synchronization support (without battery backup)
100% backward compatible with all existing drive.web installations

Optional Features

Full savvyPanel touchscreen PC and iOS device capability
EIP/PCCC Ethernet
Function Block Libraries for advanced process control, winders, and solar
DIN rail mount with screw terminals for ModbusRTU port

Models & Options

Models

dw220	speedy generic on-board controller with 500kbps ModbusRTU master & 15” port cable
dw221	speedy plug-in, on-board controller for PL/X series DC drive
dw222	speedy plug-in, on-board controller for ODE2 General Purpose VFD
dw223	speedy plug-in, on-board controller for ODP Sensorless Vector drive
dw224	speedy plug-in, on-board controller for P2 Closed Loop Vector drive
dw224S	speedy plug-in automation controller for SEW Eurodrive MLTP Closed Loop Vector drive
dw225	speedy on-board controller for Yaskawa F7 drive with 15” interface cable
dw228	speedy plug-in automation controller for E3 Series General Purpose drive
dw229	speedy automation controller with generic CANopen device with 15″ wired interface

Options

* Options are mutually exclusive | X = Available if not excluded | S = Standard feature

Function Block Libraries		dw220	dw221	dw222	dw223	dw224	dw225	dw228	dw229
-05	Advanced Process Control Function Block Library (FBL) (comparators, profilers, presets, latches, filters, counters, timers, PIDs and more)	X	X	X	X	X	X	X	X
-06	Winder Control FBL (dia. calc., taper tension., torque comp.)	X	X	X	X	X	X	X	X
-10	Advanced Math FBL (trigonometric, log, exponential)	X	X	X	X	X	X	X	X
-29	Solar FBL with sun position calculator	X	X	X	X	X	X	X	X
-36	Motion Control FBL with trapezoidal motion & cam profile	X	X	X	X	X	X	X	X
Communications Options		dw220	dw221	dw222	dw223	dw224	dw225	dw228	dw229
-04	Ethernet Modbus TCP/IP slave	S	S	S	S	S	S	S	S
-25	Ethernet EIP/PCCC interface for AB PLCs	X	X	X	X	X	X	X	X
i/o Options		dw220	dw221	dw222	dw223	dw224	dw225	dw228	dw229
-26	savvyPanel iPad/iPhone & touch screen PC operator station interface	S	S	S	S	S	S	S	S
Mounting Options		dw220	dw221	dw222	dw223	dw224	dw225	dw228	dw229
-50	DIN rail mount with screw terminal connections	X					X		X

Model	Description	Data sheet	Quote This
dw220	speedy generic interface controller with 500k...	PDF	Quote This
dw221	speedy plug-in automation controller for PL/X...	PDF	Quote This
dw222	speedy plug-in automation controller for E2 G...	PDF	Quote This
dw223	speedy plug-in automation controller for ODP ...	PDF	Quote This
dw224	speedy plug-in automation controller for P2 C...	PDF	Quote This
dw224S	speedy plug-in automation controller for SEW ...	PDF	Quote This
dw225	speedy automation controller for Yaskawa F7 d...	PDF	Quote This
dw228	speedy plug-in automation controller for E3 S...	PDF	Quote This
dw229	speedy automation controller with generic CAN...	PDF	Quote This

Documentation

drive.web Manuals and Downloads

Applications

Filename / Link	Size
compactlogix_eip_pccc_server_sample_program.zip	586.7 Kb
micrologix_eip_pccc_server_sample_program.zip	137.44 Kb

Firmware

Filename / Link	Size
dw21x_and_dw22x_v202D_or_dw22x_dw24x_v2116.zip	838.96 Kb
dw22x-v202D_v2116_and_pl-v6-13_combined.zip	1.05 Mb
dw230-0x3039.zip	2.71 Mb
pl-series-v6-13.zip	355.51 Kb

Manuals

Download the drive.web savvy Software Manual

Filename / Link	Size
HI504268_AppNote_savvy_Multicast.pdf	536.36 Kb
dw220_dw222_dw223_dw225_speedy_manuali2pt0.pdf	582.67 Kb
dw221_speedy_pl-series_manuali2pt0.pdf	597.76 Kb
dw224_speedy_odp2_manuali2pt0.pdf	554.01 Kb
dw228_speedy_manual_Iss1pt1.pdf	584.14 Kb
dw229_speedy_manual_iss1pt1.pdf	570.84 Kb
dw230_savvyPanel_touch_brochure.pdf	1.28 Mb
dw230_savvypanel_touch_manual_iss2.pdf	1.13 Mb
dw24x manual issue 3pt2.pdf	1.92 Mb
dw25x manual issue 1pt6.pdf	1.07 Mb
dw25x-HV Manual Iss1.1.pdf	636.5 Kb
dw25x-RL Manual Iss1pt2.pdf	594.07 Kb
dw25x-XA Manual.pdf	688.43 Kb
dw25x-XD Manual Iss1pt1.pdf	508.58 Kb
dw260 Manual.pdf	879.12 Kb
dw27x manual Iss1pt4.pdf	848.09 Kb
first_time_network_admin_b.pdf	1.14 Mb

Drawings

Filename / Link	Size
dw250-HVIO-Drawing.dwg	2.04 Mb
dw250-HVIO-Drawing.pdf	386.45 Kb
dw250-HVIO.step	5.17 Mb
dw250-S7-Drawing.dwg	1.4 Mb
dw250-S7-Drawing.pdf	274.23 Kb
dw250-S7.step	3.49 Mb
dw250-XAIO-Drawing.dwg	2.1 Mb
dw250-XAIO-Drawing.pdf	357.6 Kb
dw250-XAIO.step	4.43 Mb
dw250-XDIO-Drawing.dwg	2.07 Mb
dw250-XDIO-Drawing.pdf	372.08 Kb
dw250-XDIO.step	4.14 Mb
dw270-Drawing.dwg	2.56 Mb
dw270-Drawing.pdf	200.24 Kb
dw270.step	7.14 Mb

savvy Software for AC and DC Drives

Important Warning

Accept | Decline

*Note: Clicking accept will redirect you to www.driveweb.com*

speedy Embedded & Onboard Controllers

A family of miniature controllers designed to embed or mount onboard devices, such as drives, to provide full-featured automation functions and peer-to-peer networking.

Base unit features 100baseTX Ethernet, drive.web distributed control, and USB port.

So small it’s easy to miss, so smart it’s impossible to beat!

Smart Distributed Control Concept

Key Features

Precision

Standard savvyPanel Library

Standard Function Block Library

Optional Function Block Libraries

Standards

So small it’s easy to miss, so smart it’s impossible to beat!

Smart Distributed Control Concept

Key Features

Precision

Standard savvyPanel Library

Standard Function Block Library

Optional Function Block Libraries

Standards

Contact

Products

Get to Know Us

Search driveweb.com

A family of miniature controllers designed to embed or mount onboard devices,
such as drives, to provide full-featured automation functions and peer-to-peer networking.

Base unit features 100baseTX Ethernet,
drive.web
distributed control, and USB port.
