savvyPanel Overview
savvyPanel
provides unprecedented flexibility
in instrumentation, control and monitoring.
- Runs native on a savvyPanel station high resolution, touch screen display.
- Also runs on any full-featured touchscreen PC and iOS devices (iPad, iPhone, iPod touch, etc).
- Extensive library of objects such as pushbuttons, switches, meters, indicators, lamps, buzzers, etc.
- Extensive library of graphical image “tiles” to build smart machine and process graphics.
- Machine graphic “tiles” can be linked to detail control screens.
- Full savvyPanel configuration is stored in drive.web devices for instant WiFi “roaming” access.
- Supports multiple screens with multiple pages.
- Provides hierarchal access to system groups, individual systems and multiple operator levels.
- Powerful multi-level password protection.

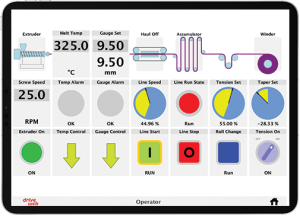

Example – Extrusion Coating Line
 |
 |
 |
|
Master System Control Station
|
Extruder Screen
|
Temperature Control Screen
|
|
Touch “EXTRUDER”
|
Touch “TEMP CONTROL”
|
|
|
Easily build your graphics and controls and link them to any location in your drives or process control system.
|
Touch a graphic tile such as the “EXTRUDER” to drill down into the detail screen.
|
Touch an arrow link such as the “TEMP CONTROL” tile to drill down into the temperature control system.
Touch the “MELT TEMP” tile in any screen to set the master temperature setpoint.
|
savvyPanel Touch
savvyPanel touch
Model dw230
enclosure for
savvyPanel touch
Model dwOPTION-54
savvyPanel touch Dimensions:
5.9” x 4.33” x 1.1” (150x110x28 mm)
8.15” x 5.47” x 1.2” (207x139x31 mm)
9.92” x 8.07” x 1.3” (252x205x34 mm)
5.9” x 4.33” x 1.1” (150x110x28 mm)
8.15” x 5.47” x 1.2” (207x139x31 mm)
9.92” x 8.07” x 1.3” (252x205x34 mm)
enclosure Dimensions:
8.4” x 5.8” x 2.2” (213x142x56 mm)
9.5” x 6.3” x 3.6” (241x160x92 mm)
11.8” x 9.05” x 3.4” (300x230x86 mm)
8.4” x 5.8” x 2.2” (213x142x56 mm)
9.5” x 6.3” x 3.6” (241x160x92 mm)
11.8” x 9.05” x 3.4” (300x230x86 mm)
5, 7, and 9.7”
Color Touch Screens
- Plug & Play, drive.web native
- Splashproof front
- High resolution (1024 x 600p)
- Competitively priced
- Easy setup
Key features
- IP65, NEMA 4 splashproof from the front
- IP20 from the back
- One Ethernet port 10/100baseTX
- Power supply 6-30VDC, 5W
- Working Temperature: -20°C to 70°C
savvy Programming
No separate programming required. The savvyPanel touch display configuration resides in the drive.web drives or automation controllers. Everything is set up and accessed from the drive.web network using the intuitive savvy tools.
Ethernet Networking Options
- Use with a LAN switch in systems of any size.
- Connect directly to any single drive.web drive or automation controller.
Enclosure Details
- Impact resistant
- flame retardant
- Polycarbonate
- NEMA 4 (IP65)
- light gray
Download savvyPanel free from the Apple App Store and get immediate access to a real, live drive system in Stevensville, Maryland, USA.
Click here for more information.
Link opens driveweb.com in a new tab.
Click here for more information.
Link opens driveweb.com in a new tab.
- Touch the “Roll Change” button to reset the length to zero.
- Turn on all the section “On/Off” switches.
- Touch the “Line Start” button - see the line run its auto cycle.
- Touch the “Set Speed” indicator to change the line speed.
- Touch the parameter name to get info.
- Touch the square display symbol to close the setter.
