I/O
UIP5 Logic
Description (description coming soon)
Availability
  • Available only in the dw1xx series products
  • Requires library: System & I/O
  • Requires: Universal Inputs (option -03)
  • Singleton function block
  • Firmware versions 0x100D and later

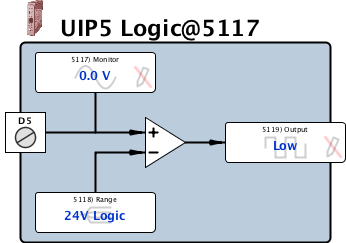

savvy-SFD Graphic uip5l
Graphic with Parameters uip5l

Parameters

Monitor Output, Read-only, Analog (signed 16-bit integer)
-327.7 V to 327.7 V
-32767 = Under-Range
32767 = Over-Range
Range Input, Read-write, Enumerated (signed 16-bit integer)
0 = 5V Logic
1 = 12V Logic
2 = 24V Logic
Output Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
