Frequency
Frequency Edge Counter
Description (description coming soon)
Availability
  • Available only in the dw2xx series products
  • Requires library: System & I/O
  • Requires: Frequency I/O
  • Firmware versions 0x201A and later

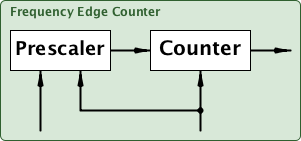

savvy-SFD Graphic freqEdgeCounter
Graphic with Parameters freqEdgeCounter

Parameters

Source Internal Parameter, Read-write, Enumerated (signed 16-bit integer)
0 = T3 Input
1 = T4 Input
2 = T5 I/O
Precount Internal Parameter, Read-only, Analog (unsigned 16-bit integer)
0 to 65535
Count Output, Read-only, Analog (signed 16-bit integer)
0 to 32767
32767 = 32767 (max)
Clear Input, Read-write, Boolean (signed 16-bit integer)
0 = Inactive
1 = Clear
Prescaler Input, Read-write, Analog (unsigned 16-bit integer)
1 to 65535
