Comparators
Equality Comparator
Description Equality comparator with hysteresis
Availability
  • Requires library: Process Control (option -05)
  • Firmware versions 0x1007 and later
savvy-SFD Graphic equalityComp

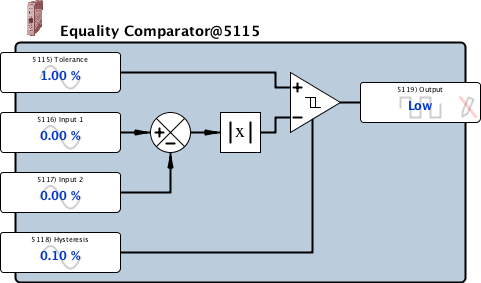

Graphic with Parameters equalityComp

Parameters

Tolerance Input, Read-write, Analog (signed 16-bit integer)
0.00 % to 20.00 %
Input 1 Input, Read-write, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Input 2 Input, Read-write, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Hysteresis Input, Read-write, Analog (signed 16-bit integer)
0.00 % to 10.00 %
Output Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
