I/O
ENC Speed Lock
Description Please see the manual page for detailed information. Incompatible with ENC1 Position and ENC2 Position function blocks.
Additional Information
Availability
  • Available only in the dw1xx series products
  • Requires library: Encoder Control (option -11)
  • Requires: Encoder 1 (option -07) or Encoder 2 (option -08)
  • Singleton function block
  • Firmware versions 0x1027 and later

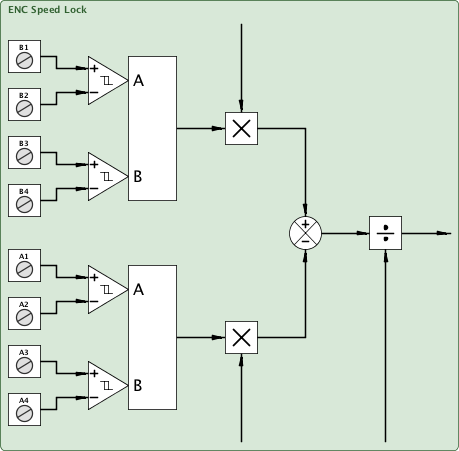

savvy-SFD Graphic encSpeed

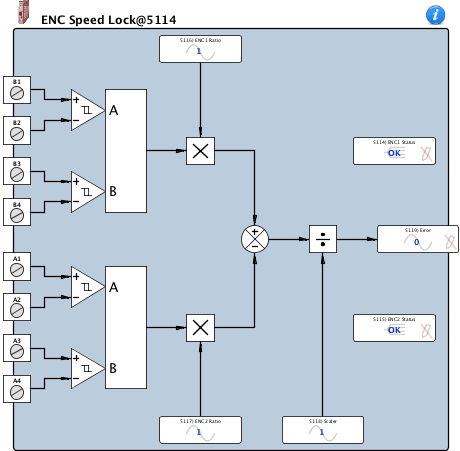

Graphic with Parameters encSpeed

Parameters

ENC1 Status Internal Parameter, Read-only, Enumerated (signed 16-bit integer)
0 = OK
1 = Fault on B
2 = Fault on A
3 = Fault on A and B
ENC2 Status Internal Parameter, Read-only, Enumerated (signed 16-bit integer)
0 = OK
1 = Fault on B
2 = Fault on A
3 = Fault on A and B
ENC1 Ratio Input, Read-write, Analog (signed 16-bit integer)
-32767 to 32767
ENC2 Ratio Input, Read-write, Analog (signed 16-bit integer)
-32767 to 32767
Scaler Input, Read-write, Analog (signed 16-bit integer)
1 to 32767
Error Output, Read-only, Analog (signed 16-bit integer)
-32767 to 32767
