Encoder
ENC Cyclic Error Converter
Description

For a typical reversing cyclic positioning application, at any point in the cycle, your Desired Position is at most +50.00% (moving forward) or -50.00% (moving backwards) of the Cycle Length away from your Current Position. Therefore, when using the positioning function blocks, the Output yields a position error between +/-50.00%.

This function block is intended for non-reversing cyclic positioning applications. Positive values (0.00% to +50.00%) are passed through unchanged. Negative values (-49.99% to -0.01%) are translated to positive values (50.01% to 99.99%). The negative values are translated to positive values the with the same physical position so the entire cycle may be smoothly traversed with only positive control values.

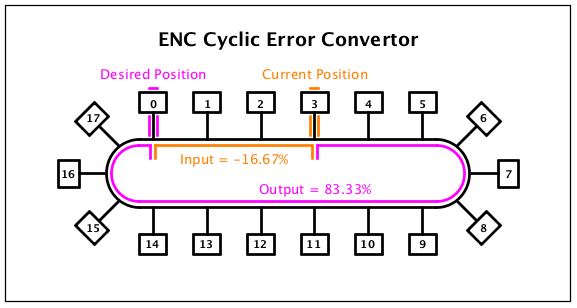

cyclic_err
Input = -16.67% translates to Output = +83.33%
Availability
  • Available only in the dw2xx series products
  • Requires library: Encoder Control (option -11)
  • Requires: Single or Dual Encoder
  • Firmware versions 0x2015 and later

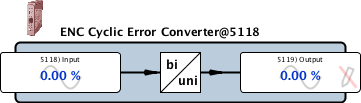

savvy-SFD Graphic encCyclicErrConv
Graphic with Parameters encCyclicErrConv

Parameters

Input Input, Read-write, Analog (signed 16-bit integer)
-50.00 % to 50.00 %

The bipolar value to be converted to a unipolar value.


Output Output, Read-only, Analog (signed 16-bit integer)
0.00 % to 99.99 %

The unipolar value which may be used as a non-reversing control output.
