Math
Cube
Description The output is clamped at ±3.2767 (which corresponds to an input of ±1.4853).
Additional Information
Availability
  • Requires library: Advanced Math (option -10)
  • Firmware versions 0x1026 and later

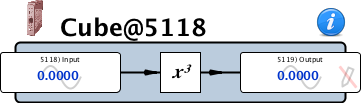

savvy-SFD Graphic cube
Graphic with Parameters cube

Parameters

Input Input, Read-write, Analog (signed 16-bit integer)
-3.2767 to 3.2767
Output Output, Read-only, Analog (signed 16-bit integer)
-3.2767 to 3.2767
