Logic Gates
AND
Description The output is the logical AND of the two logic inputs.

Input 1 Input 2 Output
0 0 0
0 1 0
1 0 0
1 1 1

Availability
  • Requires library: Process Control (option -05) or Basic Functions
  • Firmware versions 0x1007 and later

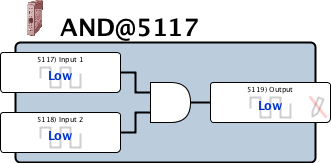

savvy-SFD Graphic and
Graphic with Parameters and

Parameters

Input 1 Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Input 2 Input, Read-write, Boolean (signed 16-bit integer)
0 = Low
1 = High
Output Output, Read-only, Boolean (signed 16-bit integer)
0 = Low
1 = High
