R&D
ConnTest
Description Test article for connection routing
Availability
  • Requires library: R&D (factory only)
  • Firmware versions 0x101D and later
savvy-SFD Graphic connTest

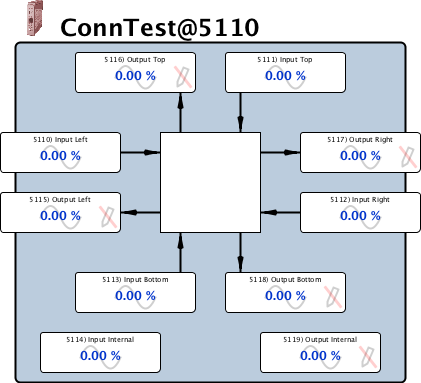

Graphic with Parameters connTest

Parameters

Input Left Input, Read-write, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Input Top Input, Read-write, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Input Right Input, Read-write, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Input Bottom Input, Read-write, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Input Internal Internal Parameter, Read-write, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Output Left Output, Read-only, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Output Top Output, Read-only, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Output Right Output, Read-only, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Output Bottom Output, Read-only, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
Output Internal Internal Parameter, Read-only, Analog (signed 16-bit integer)
-327.67 % to 327.67 %
